LABORATORY ROLL CRUSHER

Print this page
Increase Font Size Toggle Font Size '+' or '-' Decrease Font Size

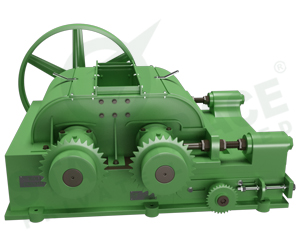

ROLL CRUSHER
Introduction:

The Roll Crusher has widely application in the industries of mining, building materials, chemical industry, metallurgy, Coal and Coke industries etc. The Roll Crusher can crush materials with middle hardness or less than middle hardness into secondary or fine granularity, such as crushing Geological Ores, mineral, rocks, coke, coal, slag, scoria, and fire-proof material etc.

Rock Roll Crusher Working Principle:

The fixed part of roller and movable roller are driven by the motor via reducer and v-belt, the raw materials fall into the part between the two rollers from inlet of the machine. The two rollers rotates inward simultaneously. The materials are extruded, crushed and ground, then the end products come out from the bottom of this crusher.

Roll crusher Features:

Double roller crusher adopts V- belt or universal joint couplings for transmission and adjusting the gap between two rollers.

Technical Specification:

Model

Capacity

Inlet size

Feed size

Output size

Rotating speed

Power

Weight

Kg/h

mm

mm

mm

r/min

kw

kg

STRC-25

250

200/75

13

0.1-3

400

1.5

230

STRC-50

500

200/85

13

0.1-3

400

1.5

240

STRC-75

750

200/125

13

0.1-3

360

3

315

STRC-100

1000

200/150

13

0.1-3

320

3

400

STRC-125

1250

200/100

13

0.1-3

320

2.2

300
