RECTANGULAR LIFTING MAGNETS

Lifting Magnets

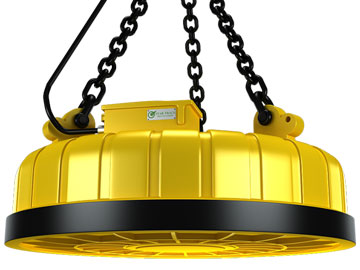

LOAD LIFTING MAGNETS

STAR TRACE Load Lifting Magnets are of robust cast and bolted or fabricated construction designed for handling Solid Slabs, Steel Ingots, Bloom Billets, Pig Iron, Light finished parts, Scrap and gives Maximum reliable, efficient and economical performance in the most arduous service condition.

RECTANGULAR MAGNETS

Rectangular Magnets for handling Steel plates, Bars, Billets, Sections and Tubes can be designed and manufactured to meet customers requirement. The construction of these magnets is similar to above with cast steel shell and poles fabricated from low carbon steel.Very long loads can be handled with two or more magnets spaced on a spreader beam to maintain equilibrium and ensure adequate supply factor.

Specification for Industrial Rectangular Lifting Magnets

Type	Size Width x Length	Power consumption of magnet	Operating Voltage	Weight	Tear - Off Force at air-gap:		S.W.L of lifint
Type	MM	KW	V	KGS	A/300 Kgs	B/100 Kgs	chain Kgs.
1	2	3	4	5	7	8	9
STR.21/10	210 x 1000	1.45	110	180	8500	5400	5000
STR.21/13	210 x 1300	1.60	110	225	10400	6700	5000
STR.21/15	210 x 1500	2.00	110	250	11500	7400	5000
STR.21/19	210 x 1900	2.40	110	300	14700	9500	6500
STR.31/09	310 x 900	2.00	110	315	11500	7300	6500
STR.31/11	310 x 1100	2.30	220	390	13900	8800	6500
STR.31/13	310 x 1300	2.60	220	480	16700	10000	8000
STR.31/15	310 x 1500	2.80	220	550	18600	11800	10000
STR.31/21	310 x 2100	4.25	220	770	25700	16300	12700
STR.41/11	410 x 1100	2.70	220	575	19300	13200	10000
STR.41/13	410 x 1300	3.25	220	710	23100	15800	12700
STR.41/17	410 x 1500	3.90	220	800	25500	17400	12700
STR.41/21	410 x 1700	4.50	220	900	28500	16500	15000
STR.51/13	410 x 2100	5.00	220	1150	34900	23900	17000
STR.51/15	510 x 1300	4.50	220	1100	35600	23000	15000
STR.51/17	510 x 1700	5.60	220	1380	43000	28000	17000
STR.51/21	510 x 2100	7.00	220	1700	53000	34000	20000
STR.61/13	610 x 1300	5.20	220	1450	42000	30800	17000
STR.61/17	610 x 1700	6.60	220	1800	49000	36200	2000
STR.61/21	610 x 2100	7.60	220	2300	61000	45000	25000

Note:

1.Technical data specification subject to change.
2.Special Rectangular Lifting Magnets can be made on request, Please send us your technical data and application, required for our engineers to provide.
